hot selling cheap strong enough kingcutting KCT table steel cutting machine factory
- *.This machine adopts integral structure,making installation easier and more reliable
- *.This machine adopts double-side driving to make torch does longitudinal movement followed straight tracks.The light design of crossbeam has a good rigidity,light self-weight and good stability of movement.
- *.The machine is equipped with water tank type dust-removing equipment,in order to achieve environmental protection requirement;a smoking type dust-removing equipment also can be applied according to the customer's needs.
- *.The machine is suitable to high-speed cutting thin sheet made of stainless steel,aluminium sheet and nonferrous metals etc.additionally,it also has able to cutting thick plate.
- *.The machine is widely applied for sheet-metal working,auto parts,wind turbines,and steel mould industries etc.
http://www.plasmacuttersupplier.com/products/cnc-plasma-cutting-machine.html

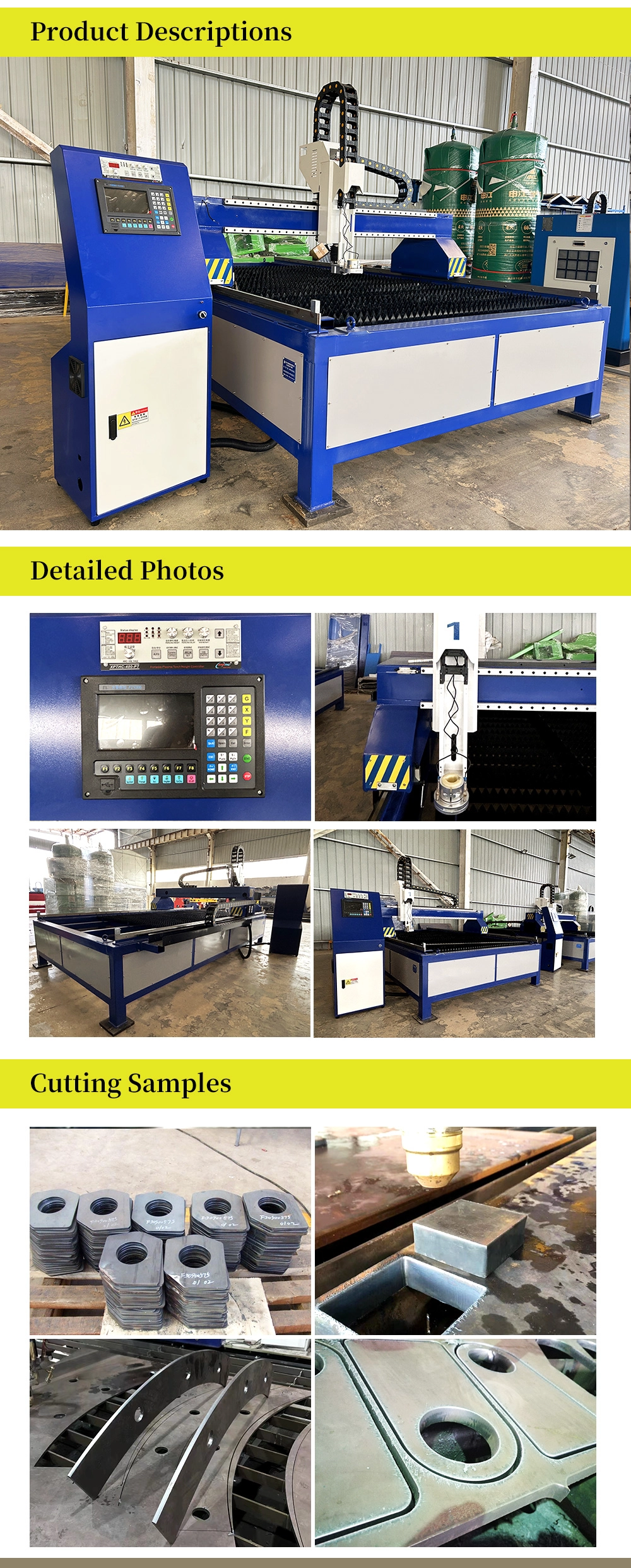

hot selling cheap strong enough kingcutting KCT table steel cutting machine factory
Specification:
- Bench model, plasma, flame, both plasma and flame cutting machine
- Bench structure, Y axis uses dual-motor dual-driven system, X, Y, Z axes all use dual straight rail that make the machine driving smoothly with high precision.
- The kerf is small, tidy and avoid a second dressing processing.
- It can apply to iron sheet, the aluminum sheet, the galvanized sheet, hardened steel plates, and metal plates and so on.
- The numerical control system disposes high, the automatic striking arc, the performance is stable.
- Support Wentai, Australia Fastcam, Germany IBE Software, FreeCAM software, produce standard G code format documents, also can change software to read AUTO CAD software produce DXF format documents. The control system uses the U disk to exchange processing document, easy to operate.
multi-head strip cutting machine supplier
|
Effective cutting width |
5’(1500mm) |
|
Effective cutting length |
10’(3000mm) |
|
Traverse Speed |
Max. 118 IPM(3m/min) |
|
Cutting Precision |
±0.2mm/m |
|
Moving Precision |
0.01mm/step |
|
Flame cutting thickness |
Max. 5-150mm |
|
Plasma cutting thickness |
According to plasma generator |
|
Flame cutting gas |
Oxygen+Acetylene/Propane |
|
Input AC Voltage |
220V±10%,50,60Hz |
|
Gas pressure |
Max.14.5 psi(0.1MPa) |
|
Oxygen pressure |
Max.101.5 psi(0.7MPa) |
|
Working Temperature |
-5-55℃ |
|
CNC System |
Fangling F2300B, Starfire or Microstep |
|
Programming software |
Fastcam, Smartnest or Starcam |
|
Vertical/Horizontal guide rail |
Taiwan HIWIN high-precision ball-type linear guide |
|
Transmission |
Rack and Pinion |
|
Motor Drive |
Stepper or Servo motor |
|
Torh height controller |
Automatic HYD plasma THC |
|
Conveyor Towline |
Germany or South Korean or domestic high strength engineering plastic towling |
|
Speed Range |
0- 6000 mm/min (continuously variable ) |
1. Professional and patient service before and after sales, giving suggestions and advice.
2. Our own factory, control the production time and delivery time strictly.
3. Experienced workers, each process of the production is in high quality, ensure the total quality of the machine.
4. Choosing the best materials for the machines when producing.
5. Testing and commissioning after installed, make sure that there is no problem and machine run well.
6. Strong packaging, make sure that the machine will not be damaged during transportation.
7. Long term warranty, 18 months.
8. 24-hours after sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
