best hot sale carbon steel kingcutting KCM metal mini plasma cutter plant china
- Features:

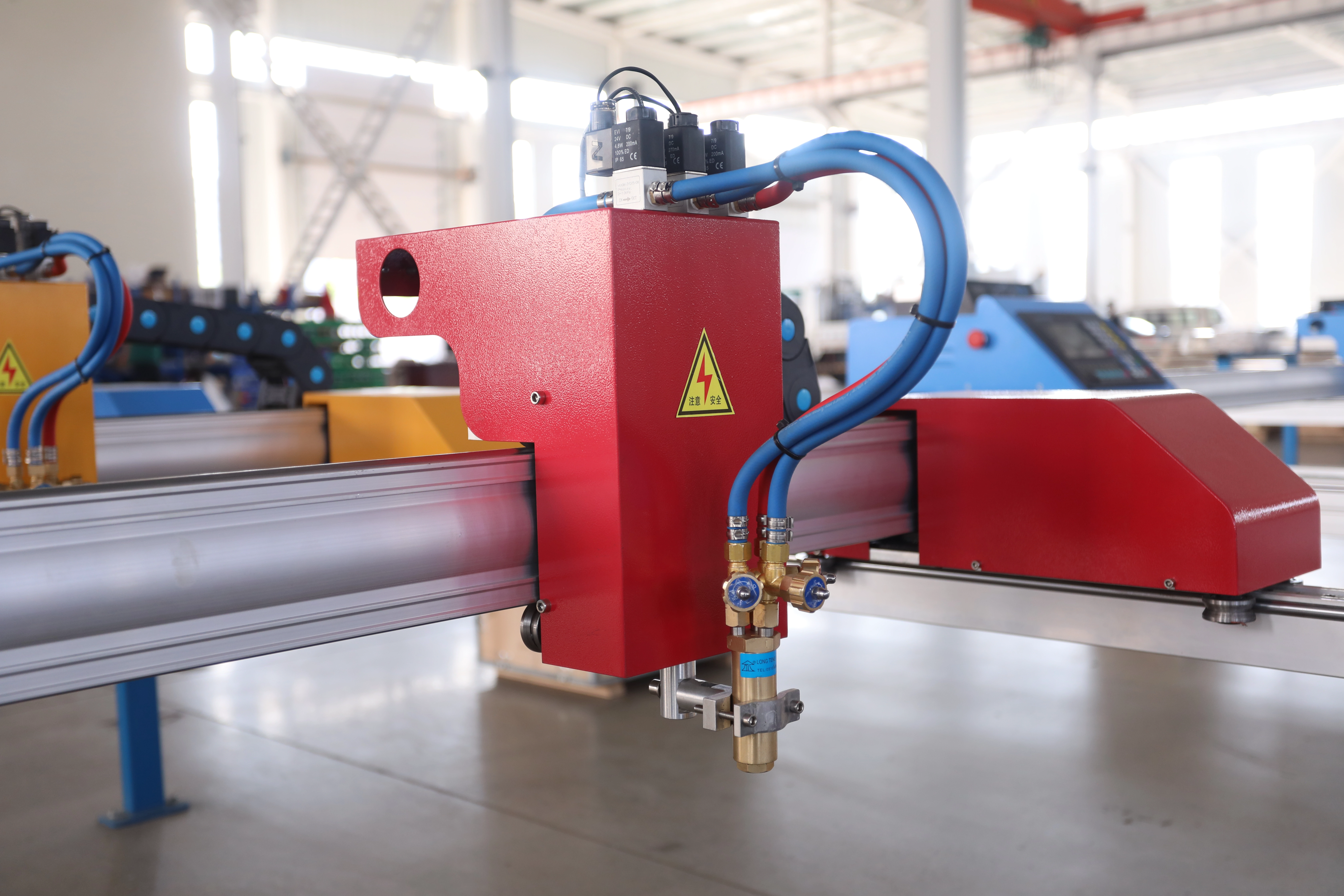

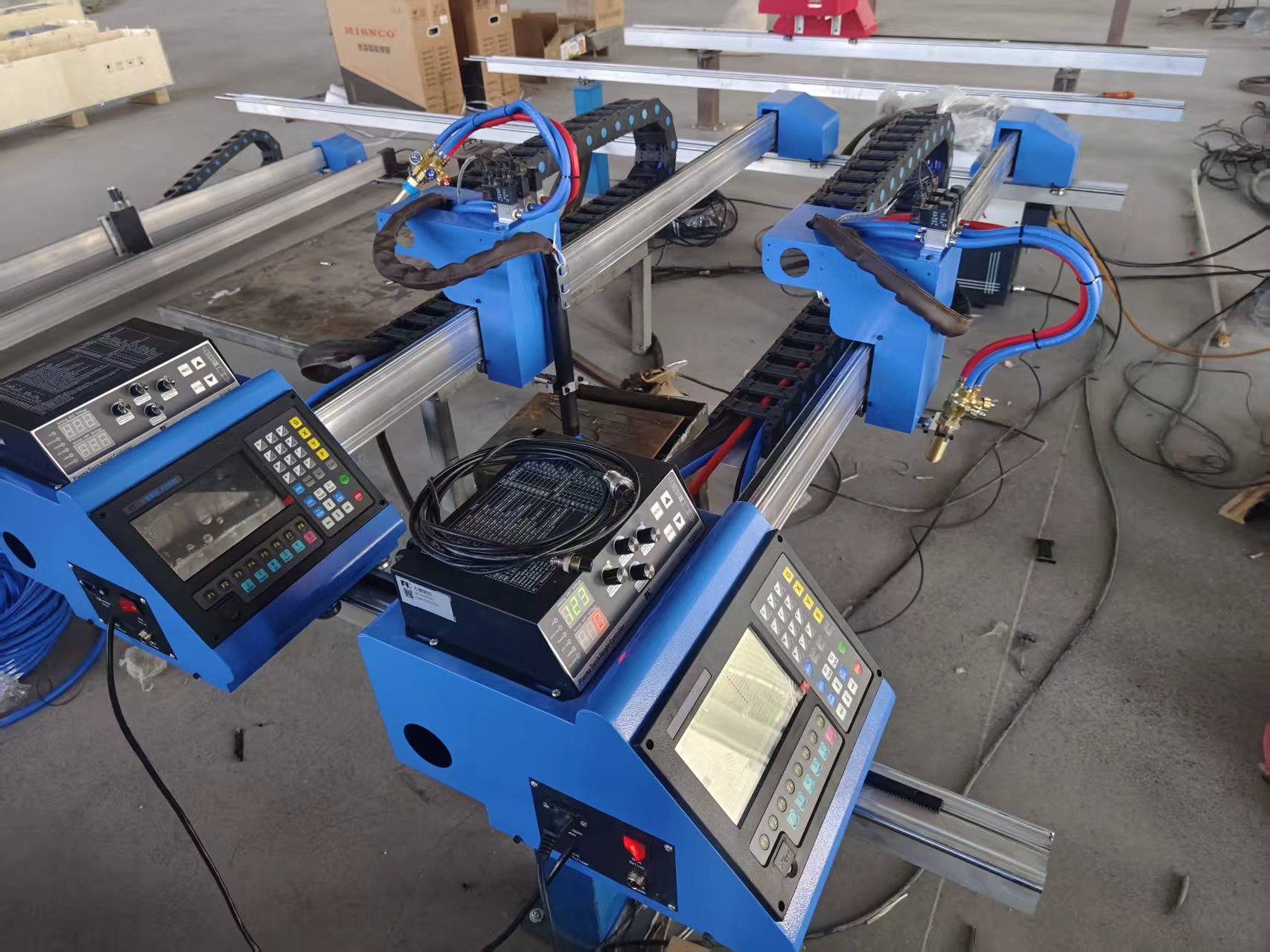

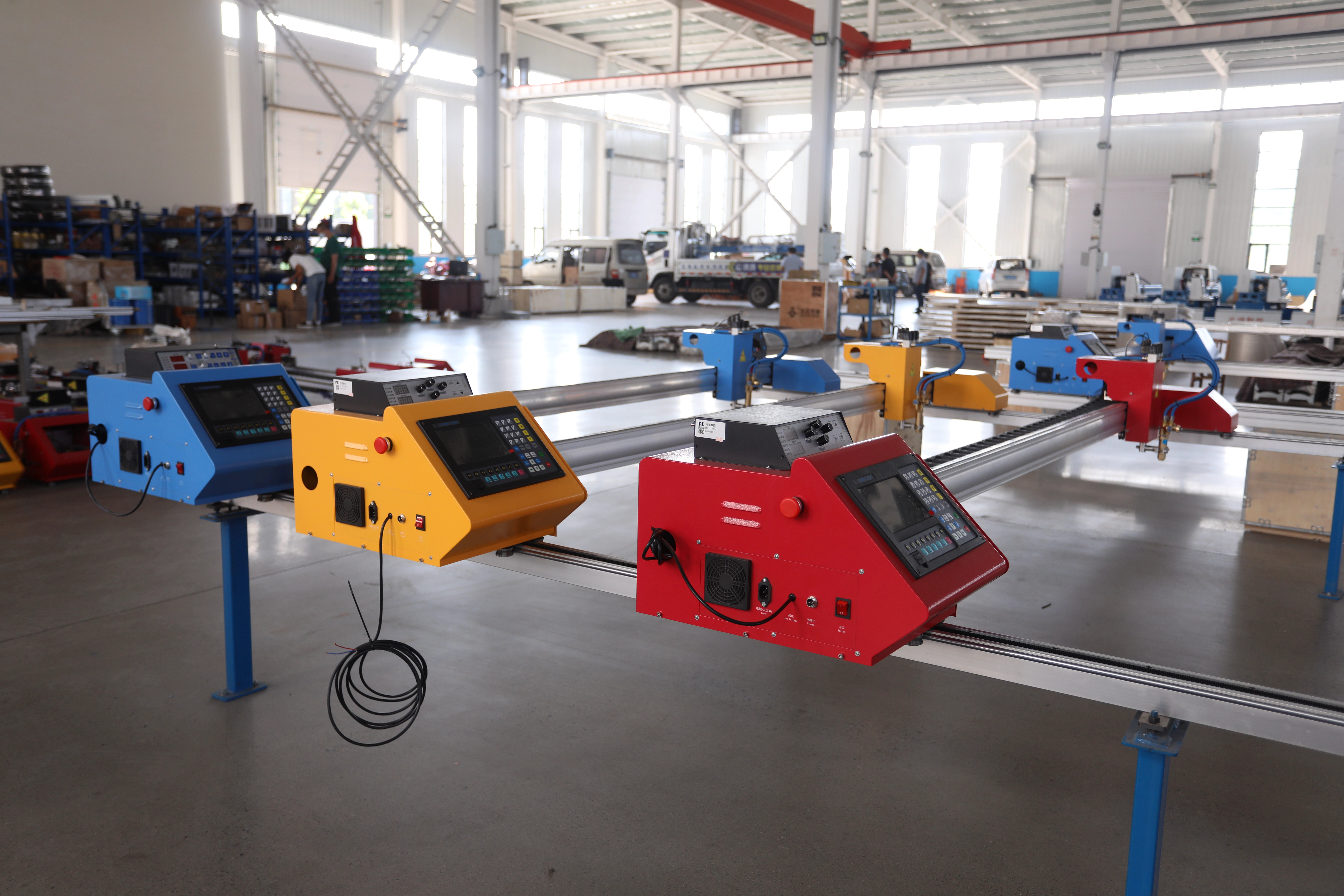

- Product name: High Precision Mini CNC plasma and flame cutter
- Model: KCM
- Product Dimension: 2950*1800*430mm
- Effective cutting size: 1500*2500mm
- Cutting torch: Plasma or flame or both
- CNC control system: Fangling F2100B
- Driver and motor: Stepper
- Nesting system: Starcam or Fastcam, SmartNest
- Torch height controller: electric for both, Arc voltage automatic THC for plasma, Capacitive automatic THC for flame
- LCD dimension: 8 inches
http://www.plasmacuttersupplier.com/about-us.html
best hot sale carbon steel kingcutting KCM metal mini plasma cutter plant china
Effective cutting size can be customized: 1500*2500mm, 1500*3000mm, 1500*4000mm, 1800*6000mm
Cut materials: carbon steel, stainless steel, aluminium plate, ... all kinds of steel plate
Plasma cutting up to 50mm ,
Oxy-fuel cutting up to 80mm
Shanghai Fangling F2100B stable system ,
Simple Menu Driven Operation ,
Shape library with 40 shapes,
Easy enter shape dimmensions
Australia FastCAM : quick and easy column and row nesting ,
F1620 Arc voltage THC: AUTOMATIC MODE FOR CUTTING , AUTOMATIC PLASMA OPERATION ,Automatic initial height sensing
Linear rials for smooth , accurate motion .
Heat shield for pierce spatter protection
Portable , Economical , Easy to USE.
steel cutting machine manufacturer
| Description | Parameters |
| Input voltage /frequency | 220v / 50HZ, 60HZ |
| Rated power | 160W |
| Machine dimension | 2950*1800*430mm |
| CNC control system | Fangling F2100 |
| Effective cutting size | 1500*2500mm |
| Torch height controller | Electric, Arc voltage automatic for plasma; Capacitive automatic THC for flame |
| Driver and motor | Stepper |
| LCD Dimension | 8 inches |
| Nesting system | Starcam, or Fastcam or SmartNest |
| Cutting thickness | Plasma: according to the plasma power source Flame: 6-180mm |
| Fuel gas source pressure | Max 0.1Mpa |
| Oxygen source pressure | Max 1.5Mpa |
| Fuel | Propane, Acetylene, Methane |
| Cutting speed | 0-8000mm/min. |
| Packaging | Plywood package |
| Brand | KingCutting or OEM |
1. Professionaland patient service before and after sales, giving suggestions and advice.
2. Our ownfactory, control the production time and delivery time strictly.
3. Experiencedworkers, each process of the production is in high quality, ensure the totalquality of the machine.
4. Choosing thebest materials for the machines when producing.
5. Testing andcommissioning after installed, make sure that there is no problem and machinerun well.
6. Strongpackaging, make sure that the machine will not be damaged duringtransportation.
7. Long termwarranty, 18 months.
8. 24-hoursafter sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
