discount price best kingcutting steel plate tube cutting machine china factory
- * Effective Cutting Range: 59" × 118" (1500mm × 3000mm)
- * Flame Cutting Gas: Oxygen + Acetylene / Propane/LPG
- * Plasma Cutting Gas: Compressed air
- * Max. Plasma Cutting Thickness: According to plasma cutter
- * Max. Flame Cutting Thickness: 5-29/32" (150mm)
- * Voltage: 110V/220V/380V/440V±10%, 50Hz/60Hz
- * Power: 0.21HP (160W)
- * Torch height controller: F1620 or SF30 Arc voltage automatic THC for plasma
- * Nesting system: FASTCAM, StarCAM, SmartNEST
- * Pipe cutting length: 0-12000mm
http://www.plasmacuttersupplier.com/about-us.html
discount price best kingcutting steel plate tube cutting machine china factory，
Effective cutting size can be customized: 1500*2000mm, 1500*2500mm, 1500*3000mm, 1500*4000mm, 1800*6000mm.
Oxy-fuel cutting up to 150mm
Shanghai Fangling F2100B stable system ,
Simple Menu Driven Operation ,
Shape library with 40 shapes,
Easy enter shape dimmensions
Australia FastCAM : quick and easy column and row nesting ,
F1620 Arc voltage THC: AUTOMATIC MODE FOR CUTTING , AUTOMATIC PLASMA OPERATION ,Automatic initial height sensing
Linear rials for smooth , accurate motion .
Heat shield for pierce spatter protection
Portable , Economical , Easy to USE.
plasma cutting machinery china supplier
|
|
Model |
KCM-1530P |
|
1 |
Power source |
AC 220±10%VAC 50/60Hz |
|
2 |
Cutting mode |
O2/C3H8 or C2H2 |
|
3 |
Effective cutting range(mm) |
1300*3000 for metal sheets, 40--300mm diameter for tubes |
|
4 |
Input Voltage |
220V, 50HZ |
|
5 |
Length of tubes |
Max. 6000mm |
|
6 |
The ovality of tubes |
Less than 2% |
|
7 |
Cutting speed(mm/min) |
0-8000mm/min |
|
8 |
Cutting thickness(Flame) |
6-160 mm (O2/C3H8 or C2H2) |
|
9 |
Cutting thickness(Plasma) |
According to plasma source; |
|
10 |
Move precision |
±0.2mm/m |
|
11 |
Cutting system |
Shanghai Fangling control system |
|
12 |
Plasma source |
Huayuan brand 40A--160A |
|
13 |
Gas pressure(Mpa) |
Max.0.1 |
|
14 |
Oxygen pressure(Mpa) |
Max.0.7 |
|
15 |
Type of gas |
C3H8 C2H2 |
|
16 |
Emergency stop |
Yes |
|
17 |
Working temperature |
-5~45℃ |
|
18 |
Power |
8.5kw |
|
19 |
ARC |
Untouched arc striking |
|
20 |
Processing Materials |
Iron, steel aluminum sheets, galvanized sheets, Titanium plates and other kind |

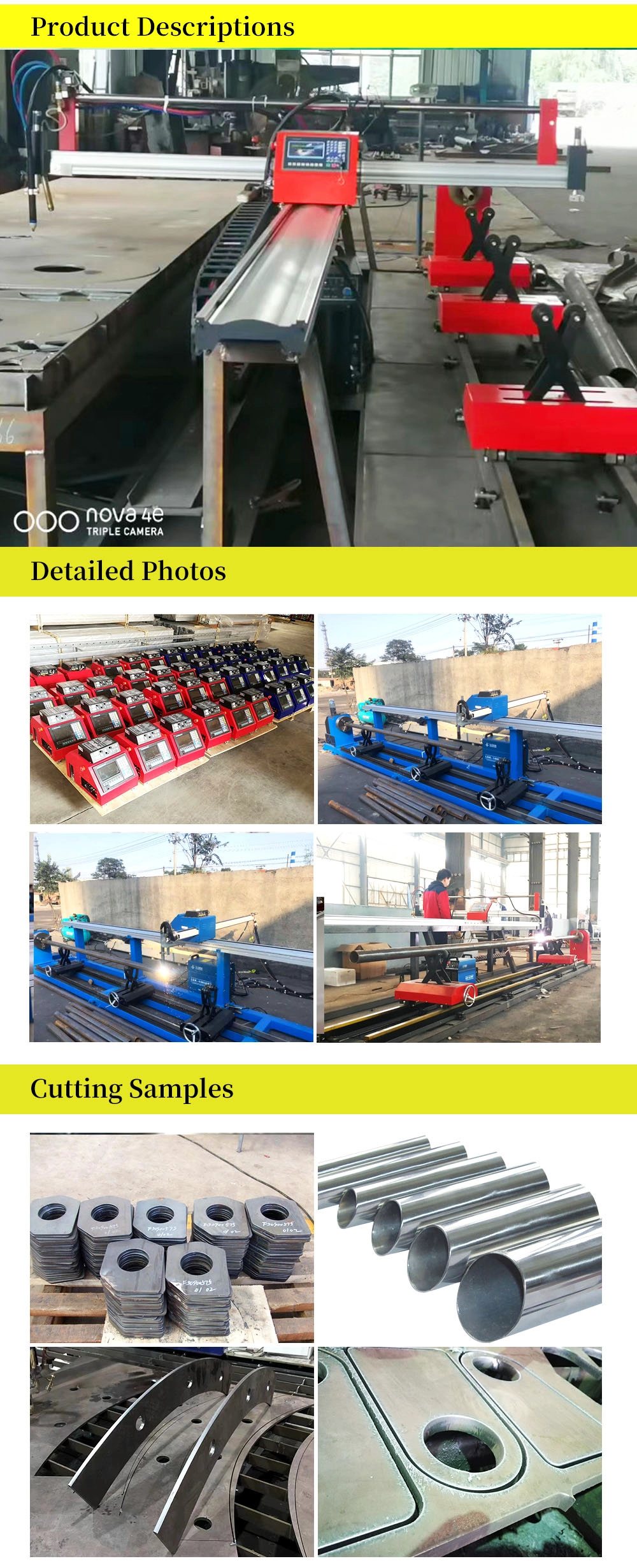

Portable type Plasma Metal Pipe cutter machine, CNC metal tubecutting machine can cut various tube and plate, it can cut mild steel withflame cutting, and carbonsteel, stainless steel,aluminum,copper and other non-ferrous metal with Plasma cutting;can configurate as your required, thus it is widely applied in industries suchas machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotiveetc.
Automatedgas cutting machine functions and a user-friendly CNC system has 45 differentcutting path settings and any plane shape composed of beeline also can beprogrammed. Precision and solid guide rails and accuracy motion controlmakes the machine can precisely cut the shape as customers’demand
1. Professionaland patient service before and after sales, giving suggestions and advice.
2. Our ownfactory, control the production time and delivery time strictly.
3. Experiencedworkers, each process of the production is in high quality, ensure the totalquality of the machine.
4. Choosing thebest materials for the machines when producing.
5. Testing andcommissioning after installed, make sure that there is no problem and machinerun well.
6. Strongpackaging, make sure that the machine will not be damaged duringtransportation.
7. Long termwarranty, 18 months.
8. 24-hoursafter sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
