low cost automatic metal kingcutting portable plasma cutting machine factory china
- Features:
- Product Name: Portable Plasma and Flame Cutting Machine
- Brand: KingCutting or OEM
- Model: KCM
- Machine Dimension: 295*180*43cm
- CNC control system: Fangling F2100
- Effective cutting size: 1500*2500mm
- Cutting torch: Plasma and flame torch
- Torch height controller: electric; Arc voltage THC and Capacitive automatic THC are optional
- Nesting system: Starcam or Fastcam
http://www.plasmacuttersupplier.com/about-us.html

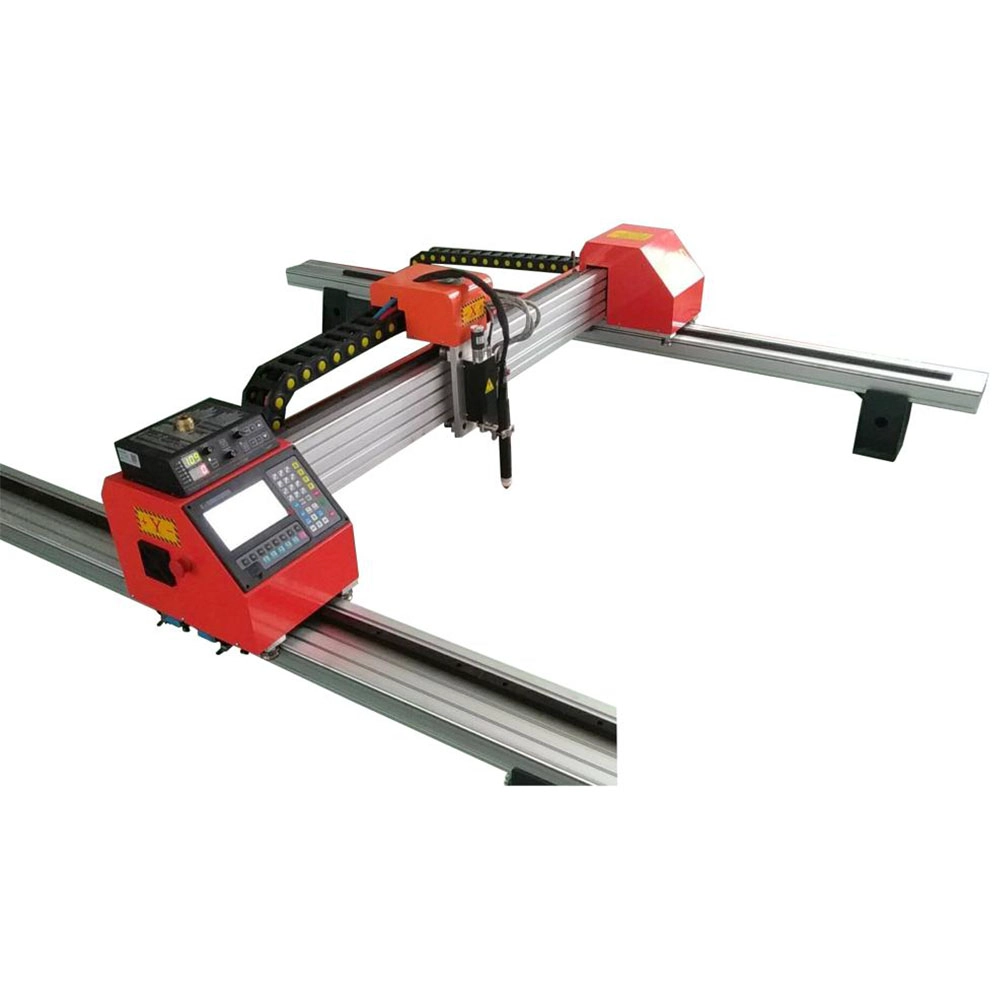

low cost automatic metal kingcutting portable plasma cutting machine factory china
Product Description：
Portable CNC Flame/Plasma Cutting Machine consists of a CNC drive unit and two aluminum alloy rails, which makes the machine can be easily disassembled into some smallparts to transport and quickly assembled to use. It’s ideal for small fabrication shops, maintenance and repair shops, trade schools,or for portable use within large facilities and construction sites.
portable cnc plasma pipe cutter ce factory
Automated gas cutting machine functions and a user-friendly CNC system has 45 different cutting path settings and any plane shape composed of beeline also can be programmed. Precision and solid guide rails and accuracy motion control makes.
| Input Voltage / Frequency | 220v/50HZ, 60HZ |
| Rated Power | 160W |
| Machine Dimension | 2950*1800*500mm |
| Effective cutting area | 1500*2500mm |
| CNC control system | Fangling F2100 or SH2012AH |
| LCD Size | 7'' color display |
| Fuel gas source pressure | Max 0.1Mpa |
| Oxygen source pressure | Max. 1.5Mpa |
| Cutting torch | Plasma and flame |
| Max cutting speed | 0-8000mm/min. |
| Cutting thickness for flame | 6-180mm |
| Cutting thickness for plasma | 0.1-50mm according to the plasma power source |
| Fuel | Propane, Acetylene, Methane |
| Torch height controller | Manual, electric, automatic THC |
1. Professional and patient service before and after sales, giving suggestions and advice.
2. Our own factory, control the production time and delivery time strictly.
3. Experienced workers, each process of the production is in high quality, ensure the total quality of the machine.
4. Choosing the best materials for the machines when producing.
5. Testing and commissioning after installed, make sure that there is no problem and machine run well.
6. Strong packaging, make sure that the machine will not be damaged during transportation.
7. Long term warranty, 18 months.
8. 24-hours after sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
