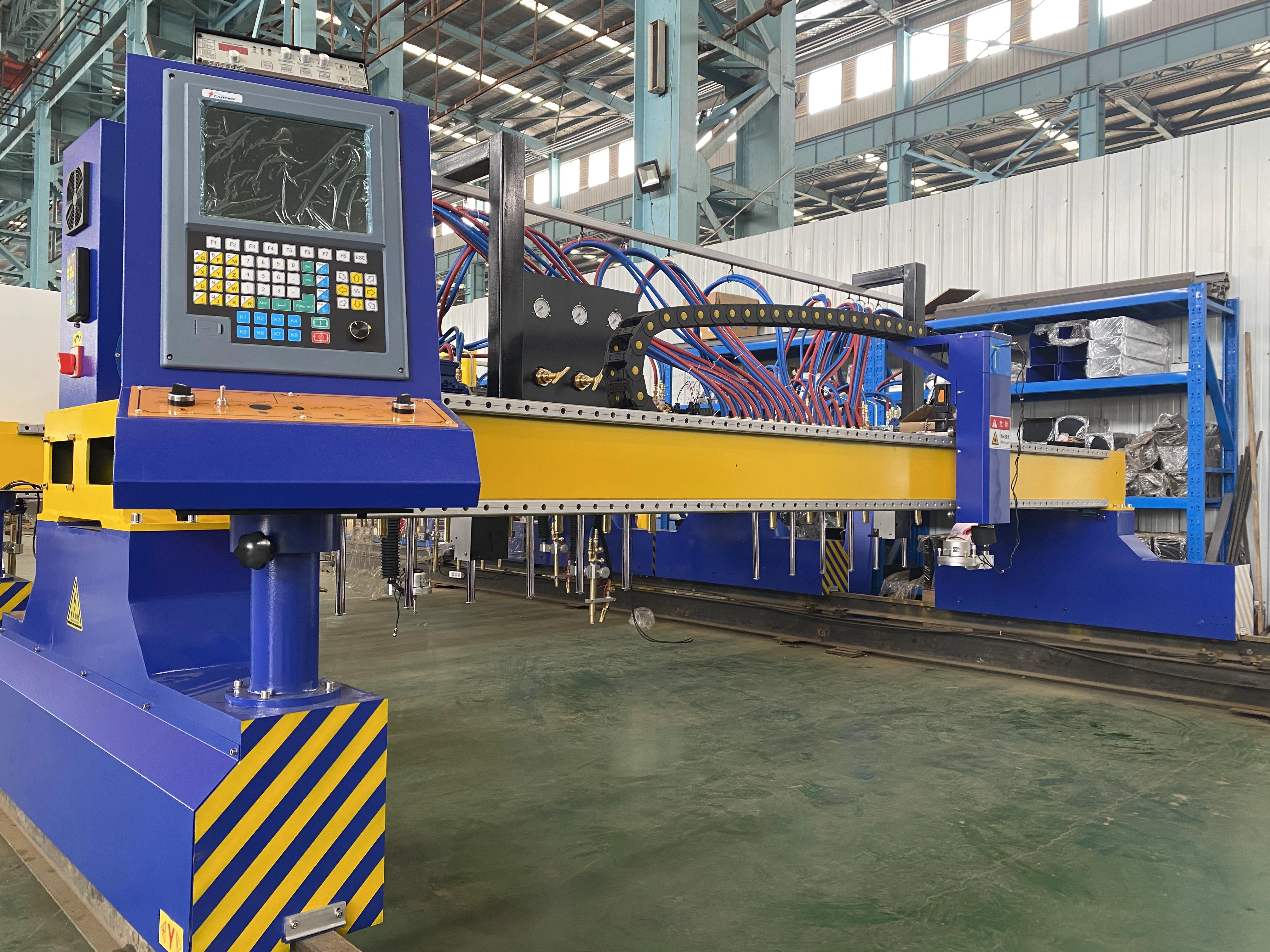

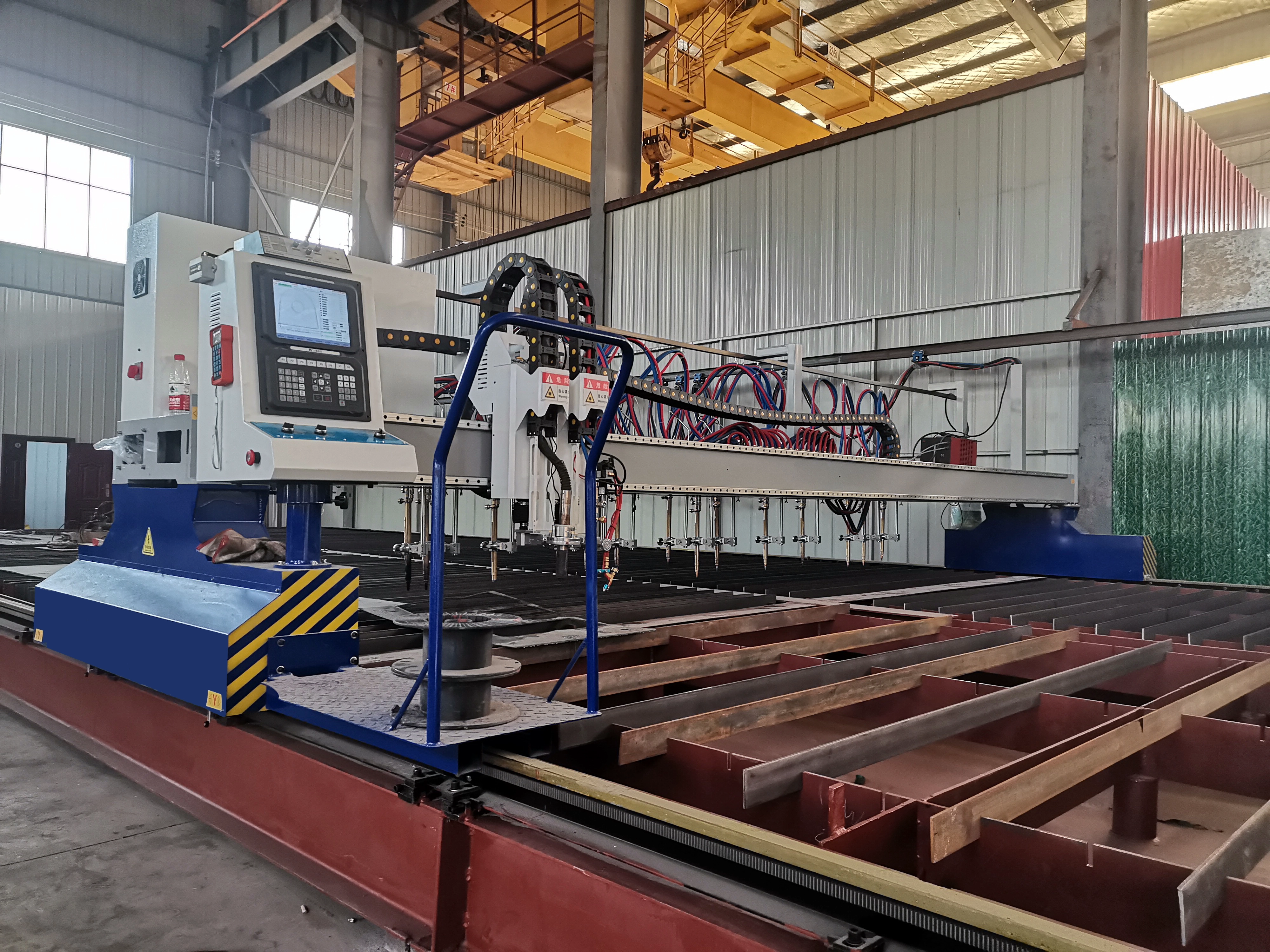

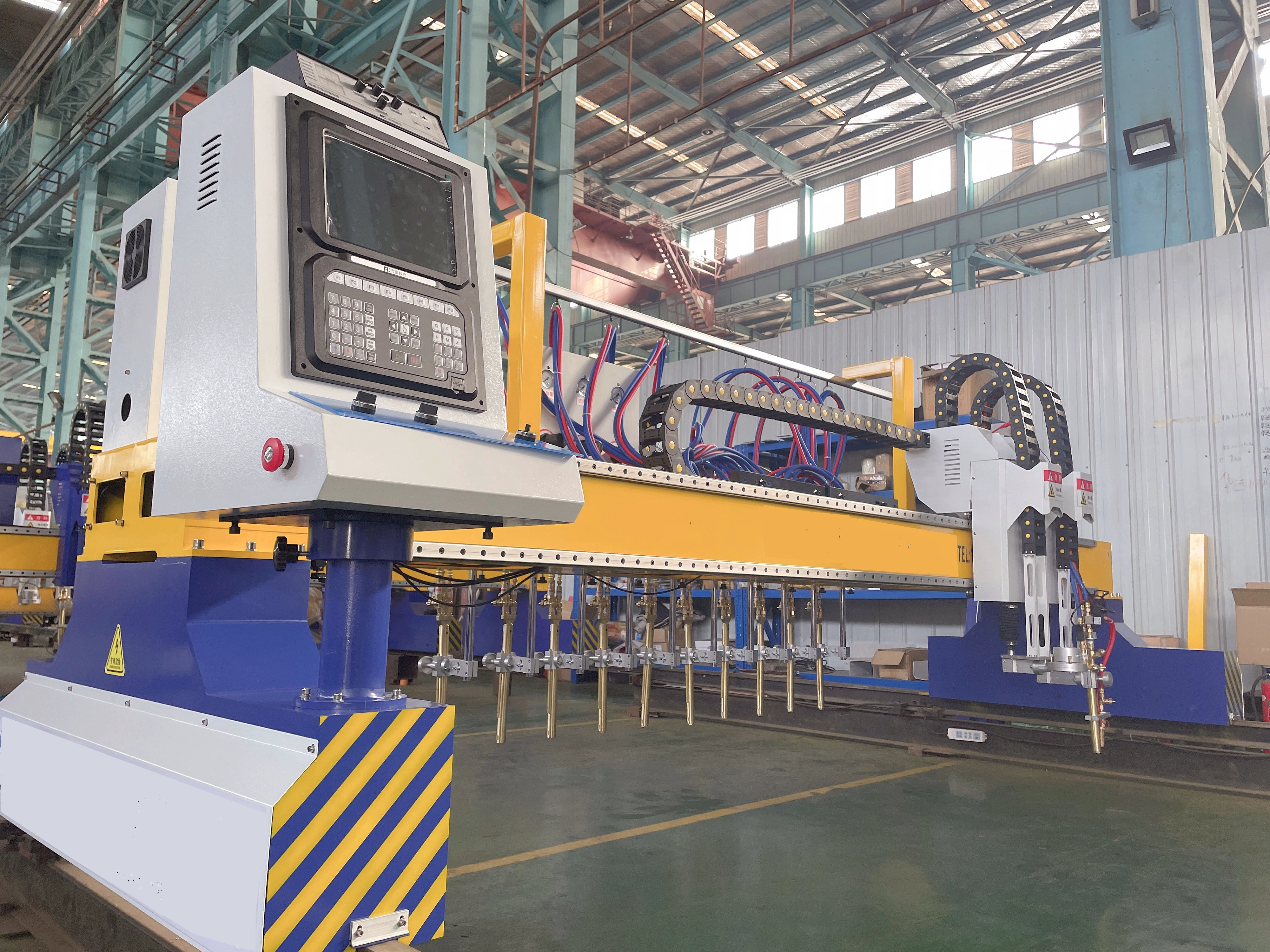

Automatic Wholesales Mild Steel Hot Selling Kingcutting KCG Gas Cutting Machine Manufacturer China
- Features：
- *.Welded steel frame structure, annealing treatment after welding, to eliminate internal stress, without deformation in the long-term use
- *.All the mechanical transmission system adopts precision rolling bearing and machining 7GB precision gear and rack meshing
- *.Drive system can use Japan Shimpo/Germany Neugart planetary reducer, the input, output error only 16 minutes of arc. At the same time, in the horizontal and vertical gear transmission structure, add an automatic clearance compensation device, the transmission structure be able to accurately perform NC system instruction
- *.Guide: the rail adopts linear slide type, precise walking on two tracks
- *.All equipment and spare parts, with black, electroplating and other surface treatment
- *.Sandblasting spray primer, topcoat with orange paint, the color is Yellow.
http://www.plasmacuttersupplier.com/about-us.html
automatic wholesales mild steel hot selling kingcutting KCG gas cutting machine manufacturer china
Flame & Plasma Cutting Mode:
Flame or plasma cutting mode can be choose as customers’ need: Flame cutting mode is more suitable for cutting thick metal plate. But for the thin metal plate, plasma cutting mode is faster and the cutting edge is smoother. Flame torch and plasma torch can be exchanged very easily.
(This machine is equipped with an Oxy-fuel torch. Plasma generator and plasma torch are not included)
aluminum cutting machine wholesales
|
No |
item |
specification |
|
1 |
Horizontal track space(mm) |
3000 |
|
2 |
effective cuttin width(mm) |
2200
|
|
3 |
Overall width (mm) |
3000 |
|
4 |
Cutting mode |
flame only, plasma only, both flame and plasma |
|
5 |
Driving method |
rack and pinion drive for X and Y axes |
|
6 |
Driving mode |
Double sides driven motor |
|
7 |
Flame cutting thickness |
6-200mm |
|
8 |
Plasma cutting thickness |
0-50mm(according to plasma power source) |
|
9 |
Cutting speed |
0-6000mm/min |
|
10 |
Empty stroke speed |
0-10000mm/min |
|
11 |
Automatic height controller |
capacitive height control for flame cutting arc voltage height control for plasma cutting |
|
12 |
Cutting gas |
acetylene, propane or LPG(optional) |
|
13 |
Plasma gas |
pressed air,oxygen,N2 |
|
14 |
Marking tool (Optional) |
yes (Optional) |
|
15 |
Nesting software (optional) |
Turbo Nest,Fast cam. |

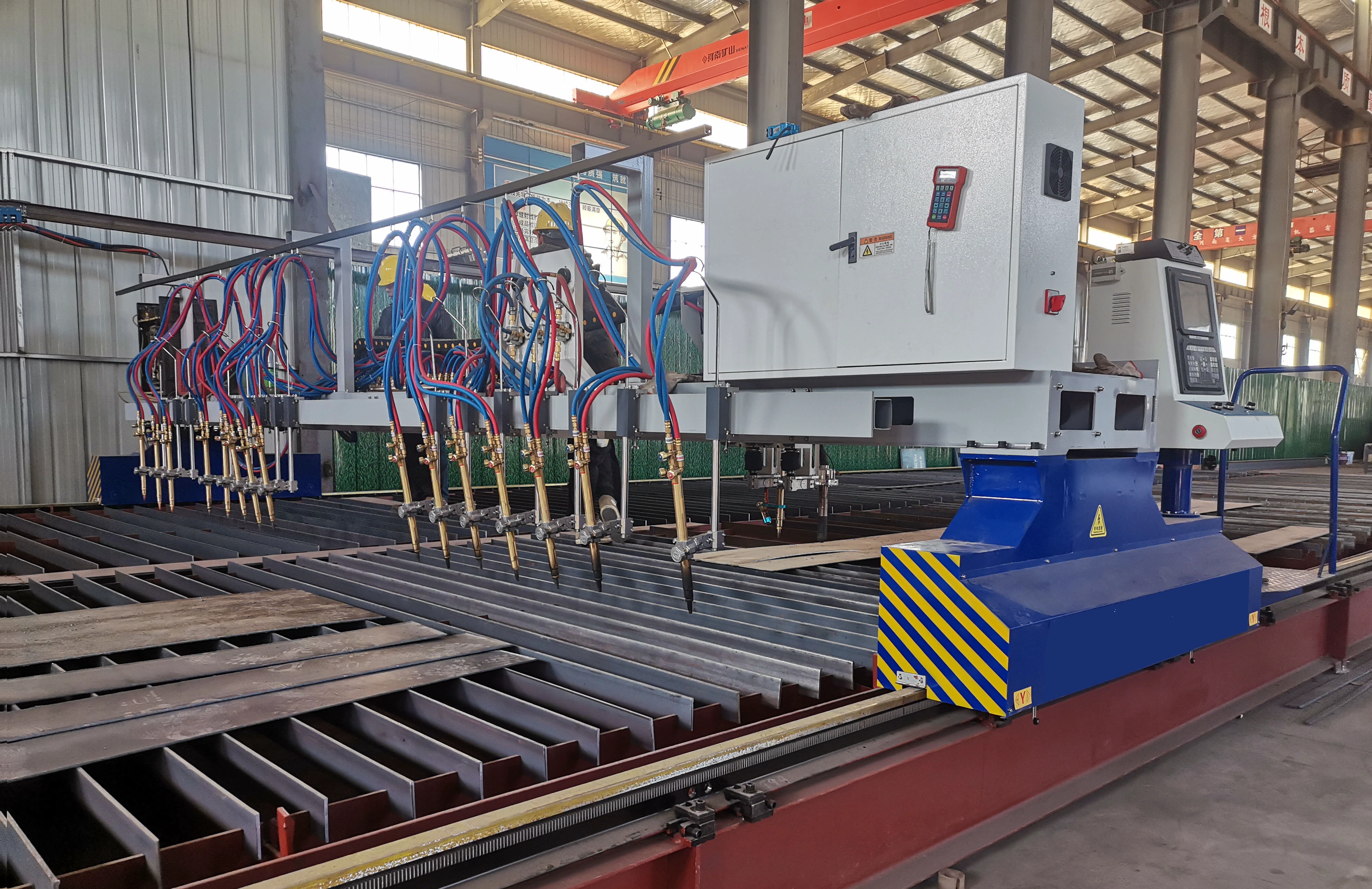

With several flame torches equipped, strips flame cutting machine is characterized of stable running and high efficiency, can be widely applied for strips cutting of carbon steel, manganese steel and other materials. Multi-cutting torches and CNC heterotypic torch system can be customized accordingly, also, automatic height adjusting system.
1. Professional and patient service before and after sales, giving suggestions and advice.
2. Our own factory, control the production time and delivery time strictly.
3. Experienced workers, each process of the production is in high quality, ensure the quality of the complete machine.
4. Choosing the best materials for the machines when producing.
5. Testing and commissioning after installed, make sure that there is no problem and machinerun well.
6. Strong packaging, make sure that the machine will not be damaged during transportation.
7. Long term warranty, 18 months.
8. 24-hours after sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
