Low Cost High Quality Metal Plate Kingcutting KCG Plasma Cutting Machine Supplier China
- Function:
- *. Effective Cutting Range: 80" × 236" (2000mm × 6000mm)
- *. Flame Cutting Gas: Oxygen + Acetylene / Propane/LPG
- *. Plasma Cutting Gas: Compressed air
- *. Max. Plasma Cutting Thickness: According to plasma cutter
- *. Max. Flame Cutting Thickness: 5-200MM
- *. Voltage: 110V/220V/380V/440V±10%, 50Hz/60Hz
- *. Cnc controller: Fangling F2300, starfire, Microstep
- *. Torch height controller: HYD Arc voltage automatic THC for plasma, Capacitive automatic THC(option)
- *. Nesting system: FASTCAM, StarCAM, SmartNEST
http://www.plasmacuttersupplier.com/about-us.html
Low Cost High Quality Metal Plate Kingcutting KCG Plasma Cutting Machine Supplier China

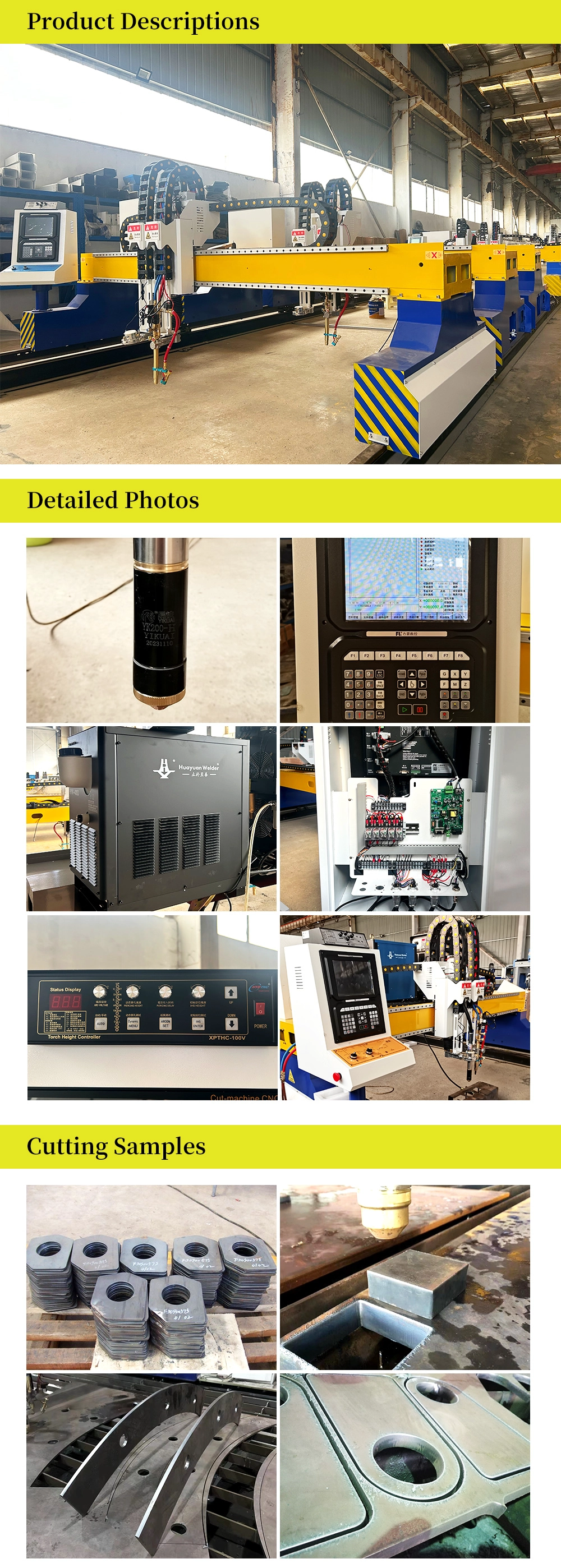

KCG CNC plasma and flame metal cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon demand.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
Model |
Gantry model series |
||||
Track Width (mm) |
3000 |
3500 |
4000 |
5000 |
6000 |
Effective Cutting Width (mm) |
2200 |
2700 |
3200 |
4200 |
5200 |
Cutting Thickness(mm) |
Plasma:1-80mm(according to plasma source) |
||||
Cutting Mode |
Plasma/Flame |
||||
Drive stylish |
Dual-Drive |
||||
Driving Motor |
Stepper or Panasonic/YASKAWA servo |
||||
NC Controller |
Fangling F2300B/Starfire SH2200/EDGE pro,Micro Edge Pro |
||||
Language |
English, Russian,Spanish, |
||||
Plasma generator Available |
China made Huayuan, Kjellberg, Hypertherm, ESAB |
||||
Software |
FASTCAM, StarCam, SmartNest |
||||
Transmission |
Rack and Pinion |
||||
Cutting Currency |
0.02mm per meter |
||||
Power voltage |
110V/220V±10% |
1. Professional and patient service before and after sales, giving suggestions and advice.
2. Our own factory, control the production time and delivery time strictly.
3. Experienced workers, each process of the production is in high quality, ensure the total quality of the machine.
4. Choosing the best materials for the machines when producing.
5. Testing and commissioning after installed, make sure that there is no problem and machine run well.
6. Strong packaging, make sure that the machine will not be damaged during transportation.
7. Long term warranty, 18 months.
8. 24-hours after sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
