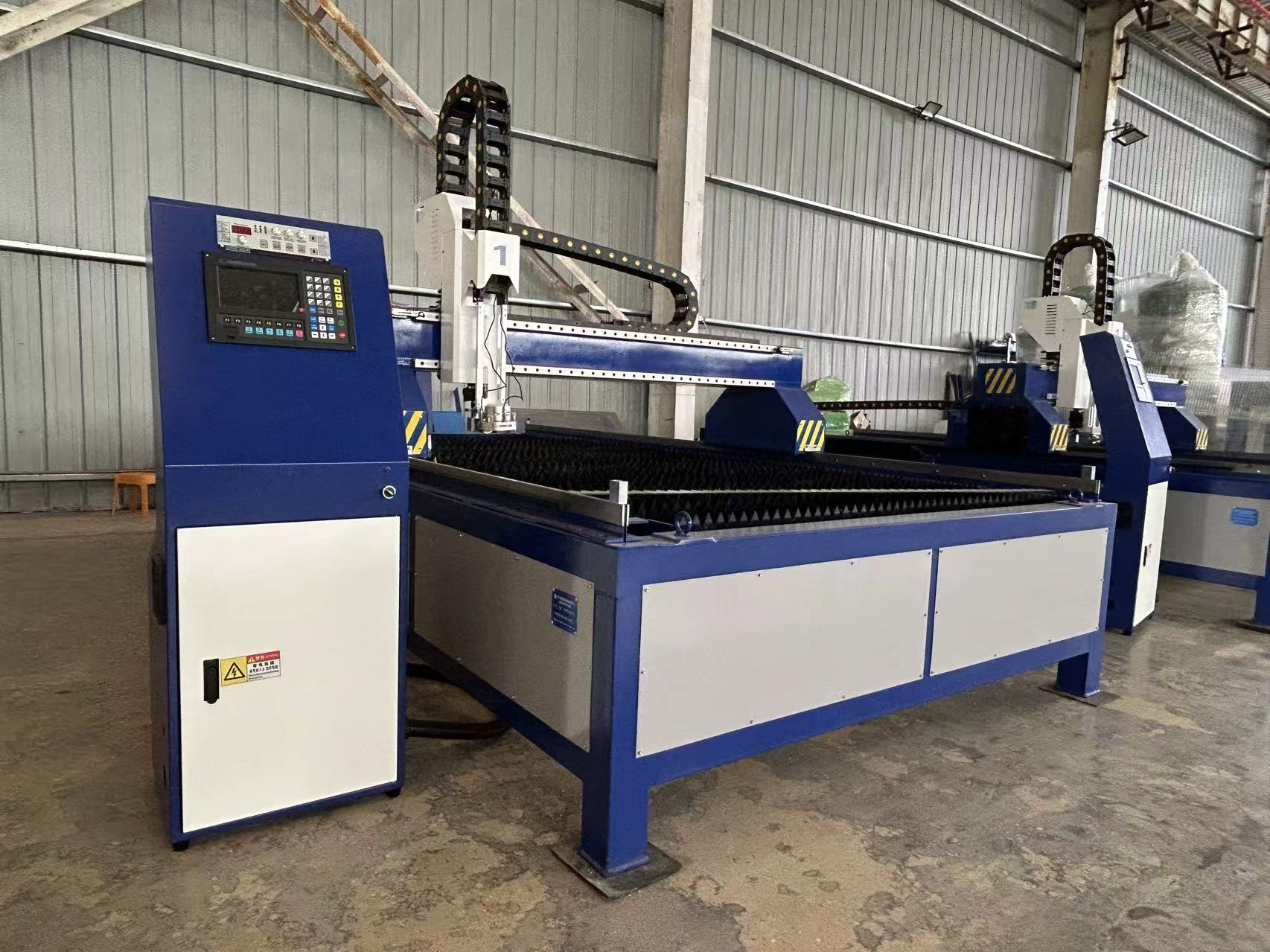

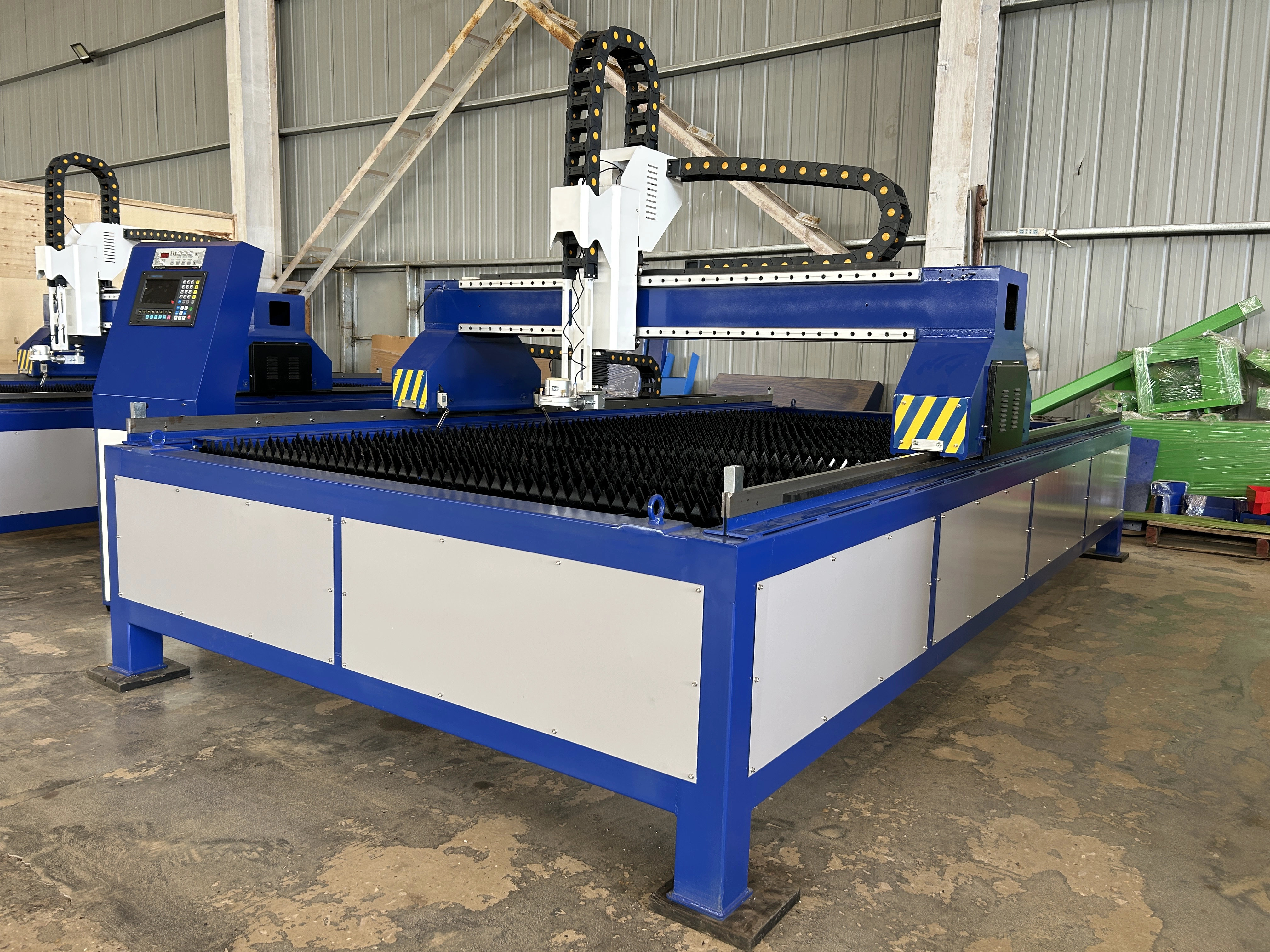

low cost best selling steel kingcutting KCT table metal plasma cutter factory supply
- Fetures：
- * Effective Cutting Range: 59" × 118" (1500mm × 3000mm)
- * Flame Cutting Gas: Oxygen + Acetylene / Propane/LPG
- * Plasma Cutting Gas: Compressed air
- * Max. Plasma Cutting Thickness: According to plasma cutter
- * Max. Flame Cutting Thickness: 5-200MM
- * Voltage: 110V/220V/380V/440V±10%, 50Hz/60Hz
- * Cnc controller: Fangling F2300, starfire, Microstep
- * Torch height controller: HYD Arc voltage automatic THC for plasma, Capacitive automatic THC(option)
- * Nesting system: FASTCAM, StarCAM, SmartNEST
http://www.plasmacuttersupplier.com/about-us.html
low cost best selling steel kingcutting KCT table metal plasma cutter factory supply
Specifications:
- Bench model, plasma, flame, both plasma and flame cutting machine
- Bench structure, Y axis uses dual-motor dual-driven system, X, Y, Z axes all use dual straight rail that make the machine driving smoothly with high precision.
- The kerf is small, tidy and avoid a second dressing processing.
- It can apply to iron sheet, the aluminum sheet, the galvanized sheet, hardened steel plates, and metal plates and so on.
- The numerical control system disposes high, the automatic striking arc, the performance is stable.
- Support Wentai, Australia Fastcam, Germany IBE Software, FreeCAM software, produce standard G code format documents, also can change software to read AUTO CAD software produce DXF format documents. The control system uses the U disk to exchange processing document, easy to operate.
plasma cutting machinery CE factory
|
Effective cutting width |
5’(1500mm) |
|
Effective cutting length |
10’(3000mm) |
|
Traverse Speed |
Max. 118 IPM(3m/min) |
|
Cutting Precision |
±0.2mm/m |
|
Moving Precision |
0.01mm/step |
|
Flame cutting thickness |
Max. 5-150mm |
|
Plasma cutting thickness |
According to plasma generator |
|
Flame cutting gas |
Oxygen+Acetylene/Propane |
|
Input AC Voltage |
220V±10%,50,60Hz |
|
Gas pressure |
Max.14.5 psi(0.1MPa) |
|
Oxygen pressure |
Max.101.5 psi(0.7MPa) |
|
Working Temperature |
-5-55℃ |
|
CNC System |
Fangling F2300B, Starfire or Microstep |
|
Programming software |
Fastcam, Smartnest or Starcam |
|
Vertical/Horizontal guide rail |
Taiwan HIWIN high-precision ball-type linear guide |
|
Transmission |
Rack and Pinion |
|
Motor Drive |
Stepper or Servo motor |
|
Torh height controller |
Automatic HYD plasma THC |
|
Conveyor Towline |
Germany or South Korean or domestic high strength engineering plastic towling |
|
Speed Range |
0- 6000 mm/min (continuously variable ) |
1. Professional and patient service before and after sales, giving suggestions and advice.
2. Our own factory, control the production time and delivery time strictly.
3. Experienced workers, each process of the production is in high quality, ensure the totalquality of the machine.
4. Choosing the best materials for the machines when producing.
5. Testing and commissioning after installed, make sure that there is no problem and machinerun well.
6. Strong packaging, make sure that the machine will not be damaged during transportation.
7. Long term warranty, 18 months.
8. 24-hours after sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
