factory directly supply low cost high quality metal plasma tube cutter china supplier
Effective cutting size can be customized: 1500*2000mm, 1500*2500mm, 1500*3000mm, 1500*4000mm, 1800*6000mm.
Oxy-fuel cutting up to 150mm
Shanghai Fangling F2100B stable system ,
Simple Menu Driven Operation ,
best cnc plasma cutter in china
Shape library with 40 shapes,
Easy enter shape dimmensions
Australia FastCAM : quick and easy column and row nesting ,
F1620 Arc voltage THC: AUTOMATIC MODE FOR CUTTING , AUTOMATIC PLASMA OPERATION ,Automatic initial height sensing
Linear rials for smooth , accurate motion .
Heat shield for pierce spatter protection
Portable , Economical , Easy to USE.
Technical Parameters:
| Model | KCP-M,portable gantry |
| Cutting size | 1500*3000mm/2000*6000mm |
| Driving method | Bilateral drive |
| Input voltage | 220V±10%，50/60Hz |
| Application | Metal, Carbon Steel, Aluminium, Copper |
| Cnc control system | Fangling/starfire |
| Cutting mode | Plasma/oxyfuel/both plasma&gas |
| Oxyfuel cutting thickness | 6-180mm (carbon steel) |
| Plasma cutting thickness | according to plasma source |
| Cutting speed | 0-6000m/min |
| Repeat positioning accuracy | ±0.05mm |
| Process precision | ±0.3mm |
| Structure | double arm (gantry mode) |
| Core components | Bearing, Gear, motor, PLC |
| Key selling point | Competitive price |
| USB interface | U-disk file transfer available |
| Warranty | 18 months |

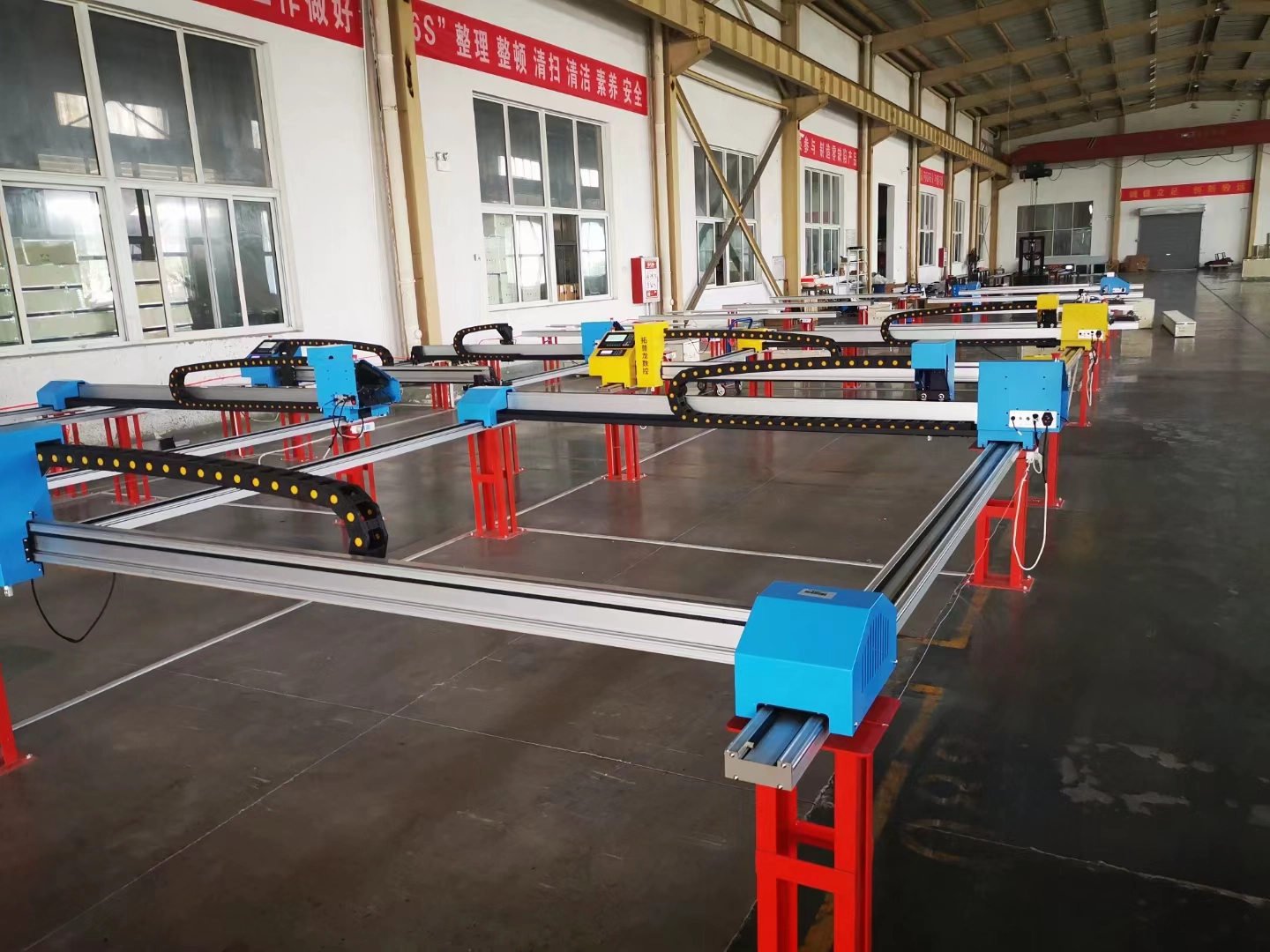

Portable type Plasma Metal Pipe cutter machine, CNC metal tubecutting machine can cut various tube and plate, it can cut mild steel withflame cutting, and carbonsteel, stainless steel,aluminum,copper and other non-ferrous metal with Plasma cutting;can configurate as your required, thus it is widely applied in industries suchas machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotiveetc.
1. Professionaland patient service before and after sales, giving suggestions and advice.
2. Our ownfactory, control the production time and delivery time strictly.
3. Experiencedworkers, each process of the production is in high quality, ensure the totalquality of the machine.
4. Choosing thebest materials for the machines when producing.
5. Testing andcommissioning after installed, make sure that there is no problem and machinerun well.
6. Strongpackaging, make sure that the machine will not be damaged duringtransportation.
7. Long termwarranty, 18 months.
8. 24-hoursafter sales service, by Email, WhatsApp, Skype, Telephone, and Wechat etc.
