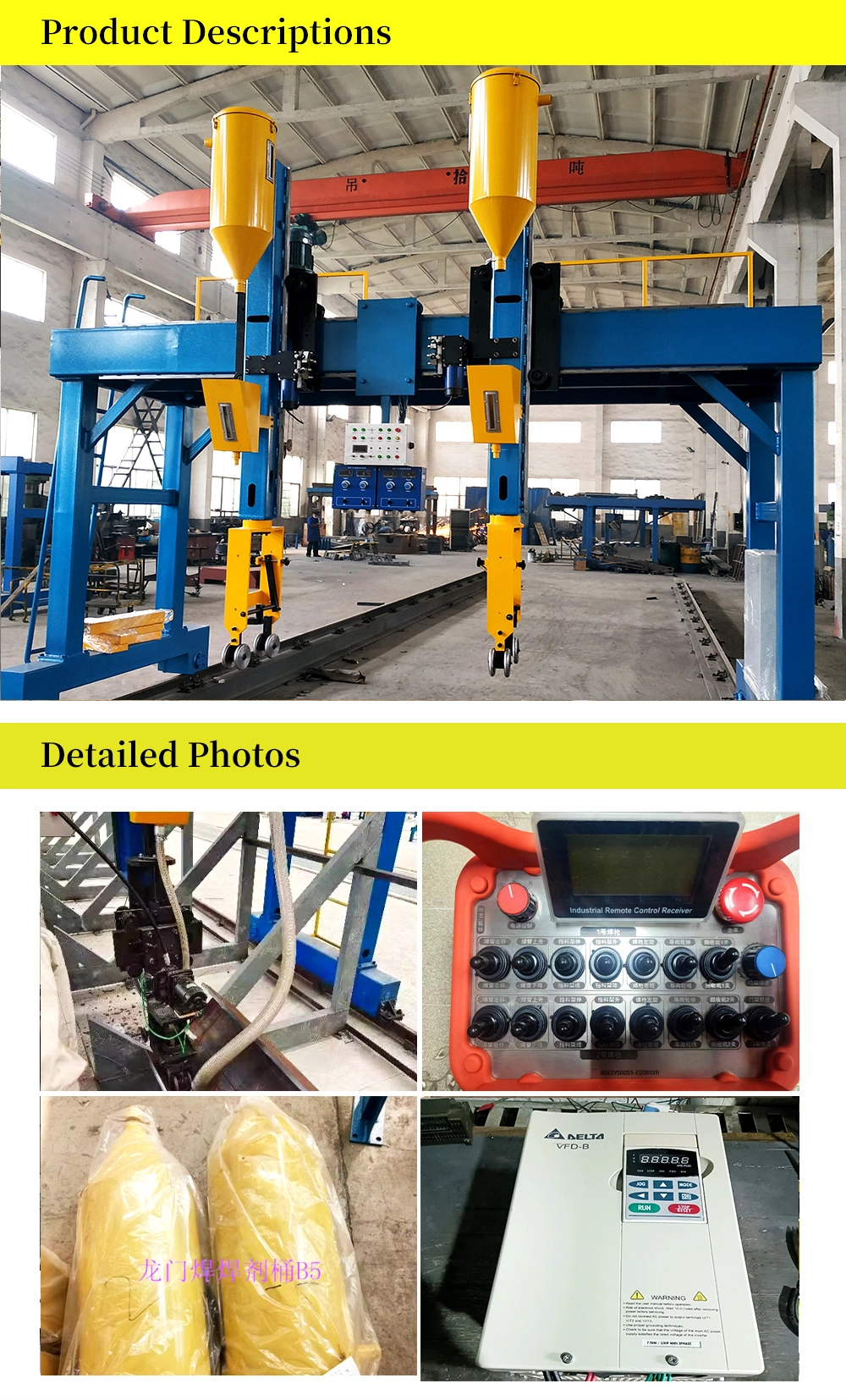

Industrial H Beam Steel Gantry Welding Machine Automatic Factory Price
1.The welding machine is special equipment for welding T/H Beam Profile. To carry out, significantly improve production efficiency, reduce equipment costs, save equipment installation space, is the production equipment for efficient production of H-Beam and T-Beam.
2.This equipment uses CNC programming control to automatically complete the automatic feeding, automatic centering, automatic welding, and other work in the production process of T / H beam profile welding, which saves a lot of manpower and provides automatic production of the entire profile solid foundation.
Technical Parameters:
| Model | KCW-H beam welding |
| Voltage | 3 Phase 380V 50/60 Hz |
| H-beam web size | 200-3000mm or customized |
| H-beam flange size | 200-800mm or customized |
| Welding speed | 0.25-0.8(m/min) |
| Welding wire size | 4-5mm |
| Workpiece length | 150-2000mm |
| Automatic grade | Semi-automatic |
| Rated capacity | 20KW |
| H-beam Web thickness | 6-80mm |
| H-beam Flange thickness | 6-80mm |
| H-beam length | 3000-18000mm or customized |
| Welding material | carbon and stainless steel |
| Welding angle height | hf=4-8mm |
| Submerged arc welding machine power | about 100kw x 2 |
| Usage | welding H/I beam profile workpiece |
| Warranty | 1 year |
